MODEL
|

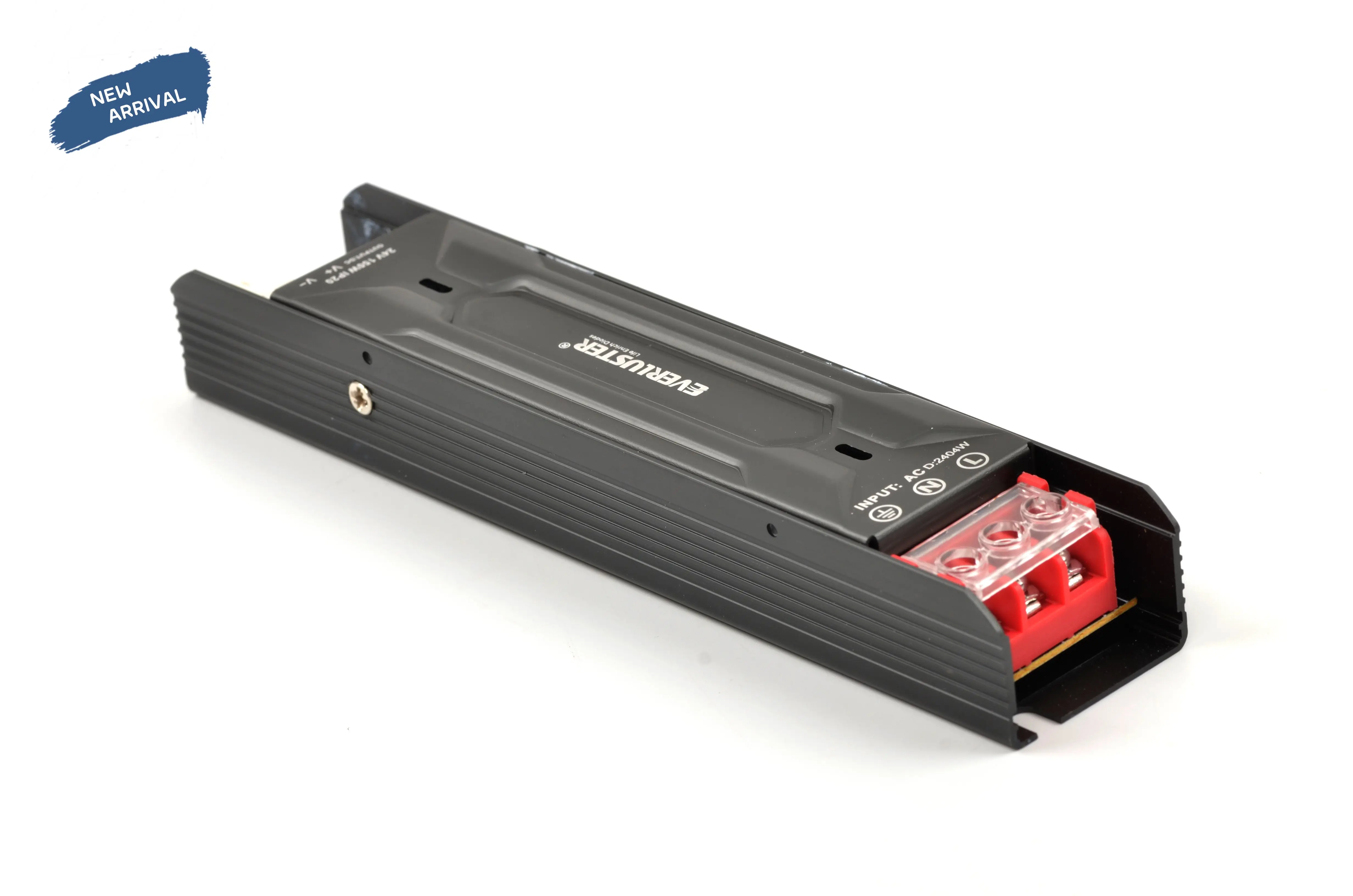

LED power supply
|
VT-150WHC-12
|
VT-150WHC-24
|
|
OUTPUT
|
Output voltage
|
12VDC
|
24VDC
|
|
Output voltage range
|
12VDC±0.5VDC
|
24VDC±0.5VDC
|
|
Output сurrent
|
Max 6.25A
|
Max 12.5A
|
|
Output power
|
Max 150W
|
|
Output power range
|
0~150W
|
|
Ripple & Noise
|
≤120mV
|
≤240mV
|
|
Linear Regulation
|
±1%
|
|
Load Regulation
|
±1%
|
|
Start-up Time (Typ)
|
500ms/230VAC 500ms/115VAC
|
|
Hold Up Time(Typ)
|
100ms/230VAC 100ms/115VAC
|
|
INPUT
|
Input voltage
|
175-264Vac or 100-130Vac
|
|
Frequency
|
50/60Hz
|
|
Input сurrent
|
1.32A/230Vac or 2.32A/115Vac
|
|
Power factor
|
PF>0.6
|
|
No-load power consumption
|
＜3W
|
|
Efficiency (typ.)
|
86%
|
85%
|
|
Inrush current(typ.)
|
Cold start 55A at 230Vac
|
|
Control surge capability
|
L,N:2KV L,N-PE:4KV
|
|
Leakage сurrent
|
Max. 0.5mA
|
|
ENVIRONMENT
|
Working temperature
|
ta: -30°C~ 50°C tc: 80°C
|
|
Working humidity
|
20 ~ 99%RH, non- condensing
|
|
Storage temp., humidity
|
-40°C ~ 80°C, 10~95%RH
|
|
PROTECTION
|
Overtemperature
|
Protection type: Turn off the output voltage, after the temperature drops, re-energize to restore.
|
|
Over load protection
|
Shut down the output when current load ≥110%~150%, auto recovers.
|
|
Short circuit protection
|
Protection type: It can be automatically restored after the fault is eliminated.
|
|
SAFETY&EMC
|
Withstand voltage
|
I/P-O/P:3750Vac
|
|
Isolation resistance
|
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
|
|
Safety standards
|
IEC/EN61347;IEC/EN60950;IP20
|
|
EMC Test Standards
|
EN55015: 2013;EN61547: 2009; EN61000-3-2:2014; EN61000-3-3:2013
|
|
Reliabilityand Quality Control
|
Impact aging
|
100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C
|
|
Component derating
|
Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value
|
|
NOTE
|
1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature.
2.Ripple and noise test method: connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth.
3.Ensure that the power supply is used under the rated parameters and environment.
|
